Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
MPS series

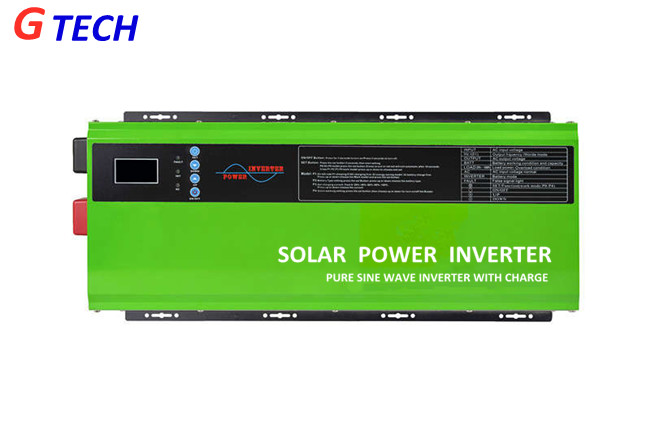

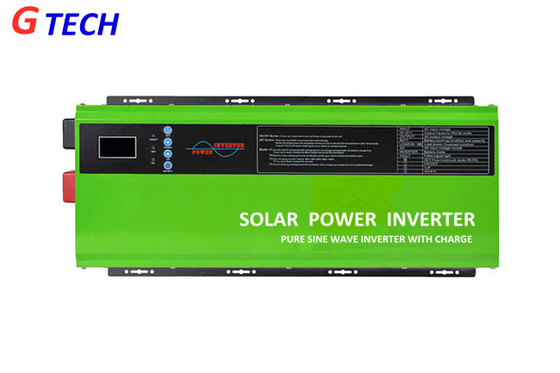

Features of Hybird Solar Inverter
Specification of Hybird Solar Inverter
Model | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | |
Default battery system voltage (VDC) | 12VDC/24VDC/48VDC | 24VDC/48VDC/96VDC | 48VDC/96VDC | |||||||
Inverter Output | Rated power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
Surge rating (20ms) | 3000W | 6000W | 9000W | 12000W | 15000W | 18000W | 24000W | 30000W | 36000W | |
Capable of starting electric Motor | 0.5HP | 1HP | 2HP | 2HP | 3HP | 3HP | 4HP | 5HP | 6HP | |
Wave form | Pure sine wave/ Same as input (AC mode) | |||||||||
Nominal output voltage RMS | 110/120VAC 220/230/240VAC(±10RMS) | 220/230/240VAC(±10RMS) | ||||||||
Output frequency | 50Hz60Hz±0.3Hz | |||||||||
Inverter efficiency(Peak) | >85% | |||||||||
Line mode efficiency | >95% | |||||||||
Typical transfer time | 8ms(Max) | |||||||||
Built-in AVR stablizer(AC voltage) | 110/120/220/230/240VAC | 220/230/240VAC | -------------------- | |||||||
AC Input | Voltage | 110/120VAC 220/230/240VAC | 220/230/240VAC | |||||||
Selectable voltage range | 85-138VAC(AC:110) 170-275VAC(AC:220) | 180-260VAC(AC:220) | ||||||||
Frequency range | 50Hz:45-65Hz 60Hz:55-65Hz 50Hz/60Hz(Auto sensing) | |||||||||
Battery | Low battery protection | 10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC) | ||||||||
Low battery cutoff | 10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC) | |||||||||
High Battery alarm | 15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC) | |||||||||
High Battery protection | 16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC) | |||||||||
AC Charger | Maximum charge current | 0-35A(Set by yourself) | ||||||||
Protection | Over load protection | Rated power over 110%,shut down automatically | ||||||||
Temperature protection | Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine | |||||||||
Short circuit protection | Automatic Shutdown | |||||||||
Solar Charge Controller | Max solar charging current | 30A,40A,50A,60A,80A | 50A,60A,100A,120A | |||||||
Voltage | 12V,24V,48V,96V | |||||||||
Max PV input power | 12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W | |||||||||
24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W | ||||||||||
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A:3840W,48V-100A:4800W,48V-120A:5760W | ||||||||||
96V-50A:4800W,96V-60A:5760W,96V-100A:9600W,96V-120A:11520W | ||||||||||
PV array MPPT voltage range | 12V:18V-100V,24V:36V-100V,48V:72V-150V,96V:144V-280V | |||||||||
Peak conversion efficiency | >99% | |||||||||
Other | Mounting | Wall mount | ||||||||
Display | LCD+LED | |||||||||
Cooling fan | Intelligent fan cooling system | |||||||||
Audible noise | <60dB | |||||||||
Coommunications | RS-232,SNMP(Optional) | |||||||||
Operation temperature range | -10℃~70℃ | |||||||||
Storage temperature | -10℃~60℃ | |||||||||
Appearance | Product size(L*W*H) | 510*325*215 | 645*325*215 | 765*320*250 | ||||||
Packing size(L*W*H) | 580*385*270 | 725*410*290 | 840*405*320 | |||||||
Net weight(Kg) | 16 | 19 | 22 | 31 | 33 | 35 | 55 | 61 | 67 | |
Gross weight(Kg) | 18 | 21 | 24 | 34 | 36 | 38 | 59 | 65 | 71 |
Application of Hybird Solar Inverter
