Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE, ISO，SGS
Model Number:
Low Frequency Online UPS

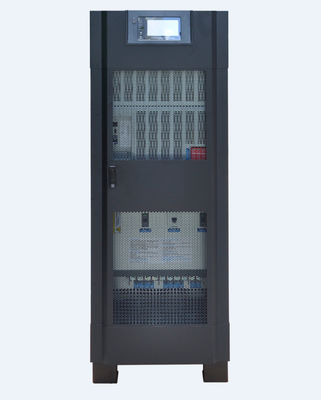

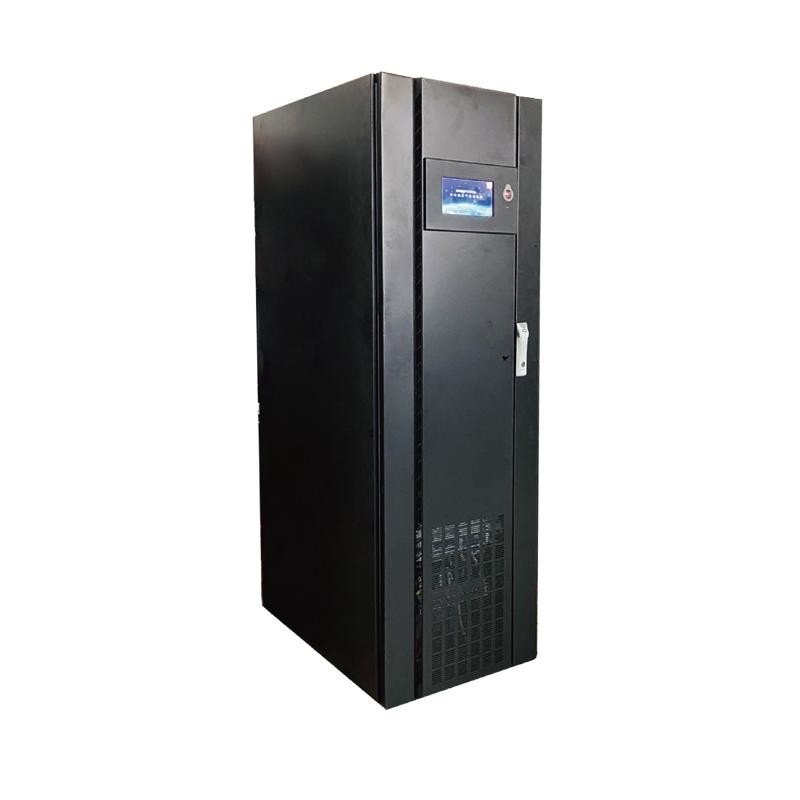

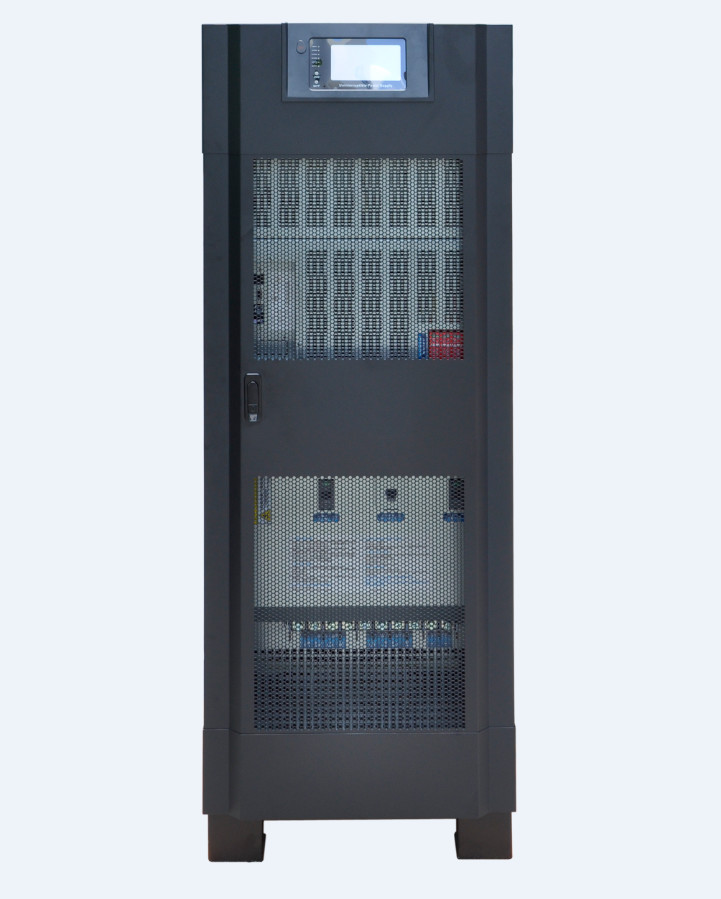

GP33 3 Phase Industrial Online UPS 10-200KVA Low Frequency's advanced battery charging system enables the UPS to supply a long backup time while the charging time is rather short, and its temperature compensation system can help to prolong the service life of the vattery. Also, its circuit is simple, which reduces the number of components and makes the machine more compact and more reliable.
Its ture double-cpn version online technology provides pure and safe power supply to all appliances, communication equipment and important loads connected to the internet, and the DSP technology responds quickly to different power supply problems, making sure its load will work uninterruptedly.
It is compatible to all kinds of loads and widely used in the fields of energy sources, transportion, office, medical equipment, engine-room, data center, toll station and so on.
Feature:
1. High-efficient DSP chip
2. Outstanding electric property
3. Good looking and excellent hardware
4. N+X parallel redundancy (compatible to battery share in the parallel mode)
5. Frontal-board operation and maintenance
6. Twin-channel line input
7. Remote monitoring
8. Intelligent management of battery charging and discharging
9. Flexible battery arrangement
10. Flexible arrangement, change due to the need.
| Model # | GP33 series | ||||||||||||
| Capacity | 10KVA | 15KVA | 20KVA | 30KVA | 40 KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA | ||
| INPUT | |||||||||||||
| voltage | (208/308/400/480Vac) ± 20% / 5 wires (3 lines + neutral + ground) | ||||||||||||
| frequency | 50/60Hz ± 10% Auto sensing | ||||||||||||
| power factor | 0.98 | ||||||||||||
| filter | EMI, RFI | ||||||||||||
| dual input | optional | ||||||||||||
| OUTPUT | |||||||||||||
| voltage | (208/308/400/480Vac) ± 20% / 5 wires (3 lines + neutral + ground) | ||||||||||||
| frequency | 50/60Hz ± 1% Auto sensing | ||||||||||||
| Efficiency | AC/AC>92% | ||||||||||||
| transfer time | 0 ms | ||||||||||||
| wave form | sine wave | ||||||||||||
| power factor | 0.8 | ||||||||||||
| voltage T.H.D. | <2% with linear load | ||||||||||||
| crest factor | 3:1 | ||||||||||||
| technology | true on-line double conversion controlled by microcontroller | ||||||||||||
| overload recovery | automatically transfer to UPS mode | ||||||||||||
| Isolation transformer | inverter mode (bypass mode is optional) | ||||||||||||
| parallel connection | parallel connection function is ready (extra PCB is not reuired) | ||||||||||||
| BATTERY | |||||||||||||
| battery type | VRLA (valve regulated lead acid), not included | ||||||||||||
| DC voltage | 384 Vdc | ||||||||||||
| charging time | 4 hours up to 90% | ||||||||||||
| battery detection | self-detect, transfer to battery mode adjustable | ||||||||||||
| PROTECTION | |||||||||||||
| lightning and transient protection | hot swappable lightning and transient surge suppressor (in:10Kamp, Up:1.5 Kv, I max: 20 Kamp.) | ||||||||||||
| harware protection | input breaker, output breaker, battery breaker, bypass breaker; DC fuse, fan, redundant power supply; temperature sensor, EPO (Emergency Power Off), audible alarms etc. | ||||||||||||
| software protection | discharging batteries, battery charger working mode, inverter working mode, emergency power off, manual shutdown, bypass SCR failure, bypass sequence failure, bypass over the limit, critical overload, batteries exhaustion, low or high output voltage, DC fuse open, 5V power supply failure, 13.5 power supply failure, inverter overvoltage, 200% overload on each line, transfer failure, inverter voltage out of range, over voltage betweenneutral and ground, UPS on bypass mode, bypass frequency out of range. | ||||||||||||
| bypass | solid state | ||||||||||||
| overload | 125% for 10min, 150% for 30sec, 1000% for 16 millisecond | ||||||||||||
| EPO | EPO local and/or remote | ||||||||||||
| Display | LCD, touch screen | ||||||||||||
| LED diagram | included | ||||||||||||
| communication | RS232 intelligent slot, modem, SNMP(RJ45) (SNMP adaptive software is supplied by the producer) | ||||||||||||
| ENVIRONMENT | |||||||||||||
| elevation | 1.700 m.o.s.l without derrating | ||||||||||||
| temperature & noise | 0℃~40℃/<60dB @1.5m. | ||||||||||||
| humidity | 0~95% non condensate | ||||||||||||
| PHYSICAL | |||||||||||||
| Unit dimension (mm) | L830*W402*H1050 | L664*W865*H1548 | L966*W890*H1748 | L1160*W1043*H1900 | |||||||||
| Net weight (1pc, kg) | 152.5 | 167.5 | 193.5 | 222.5 | 362.55 | 434.05 | 534.05 | 670.05 | 746.05 | 1120 | 1320 | ||
GP33 3 Phase Industrial Online UPS 10-200KVA Low Frequency is a reliable power supply unit that provides a stable and uninterrupted power supply with low frequency.
Application to office, computer facilities and industrial environments
Advanced communication function:
With the use of communication interface and monitoring software, you can monitor this UPS on your computer, which simplifies the management of power supply. You can also choose to buy a SNMP card, which is compatible to all kinds of operating system, and supports TCP/IP, SNMP,HTTP protocol, so as to monitor the UPS through internet. Moreover, it will be easier to achieve central maagement even users are scattered in different places and it can also diagnose network and maintain the system remotely, realizing global managemnent in a very real sense.
Software monitoring through RS232.
Monitoring through network adapter.
Monitoring through GPRS
Packaging of Low Frequency Online UPS needs to be done with utmost care to avoid any form of damage to the units during transit. The best practice is to use corrugated cardboard boxes with inner cushioning material like foam, bubble wraps, etc. for extra safety. Proper labeling should be done to avoid any form of mishandling.
Shipping of Low Frequency Online UPS needs to be done with reliable carriers with tracking. The best practice is to opt for express shipping for quick delivery and to avoid any form of delay and damage to the units.
