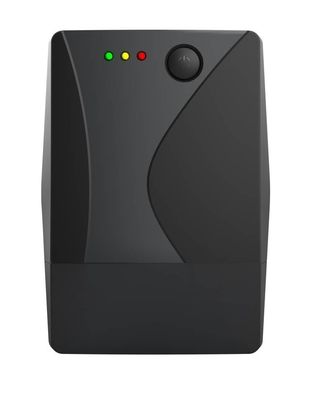

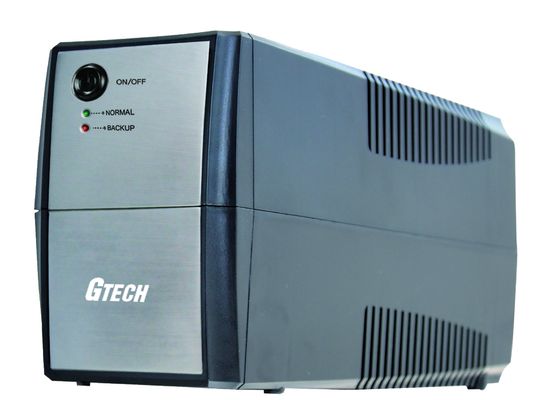

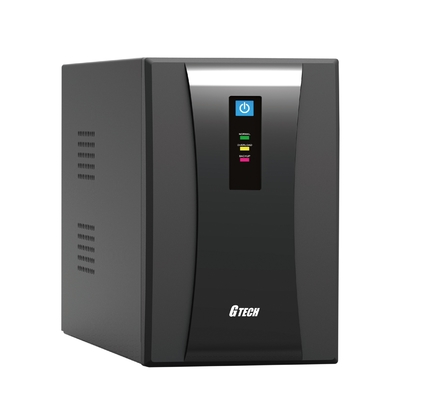

7AH/9AH/12AH/18AH Battery Capacity Modular Type UPS 220V PWM UPS

7AH/9AH/12AH/18AH Battery Capacity Modular Type UPS 220V PWM UPS

18AH Battery Modular Type UPS

Modular Type PWM UPS

220V PWM UPS

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE, ISO,SGS

Model Number:

PWM UPS

Contact Us
Request A Quote
Product Details
Battery Capacity:
7AH/9AH/12AH/18AH
Transfer Time:
≤10ms
Input Frequency:
50Hz/60Hz
Type:
PWM UPS
Input Voltage:
220V
Output Frequency:
50Hz/60Hz
Payment & Shipping Terms
Minimum Order Quantity
100
Price
negotiation
Packaging Details
carton
Delivery Time
20~25days
Payment Terms
L/C, T/T, Western Union
Supply Ability
200000 pcs per month
Product Description

Product Description:

We are a specialized manufacturer of DC UPS, for over 18 years, DCT-60 and DCT-120 with over 100 thousand yearly production.
Because of the lead-acid battery, DC UPS would have a long backup time on the load. As for the service life, it can provide a longer service life for user with the battery management system.
This mini DC UPS is with battery back-up system, as uninterruptible power supply for CCTV, WIFI, POE CAM and most digital products in the market.

Features:

  • Product Name: PWM UPS
  • Type: PWM UPS
  • Input Frequency: 50Hz/60Hz
  • Output Frequency: 50Hz/60Hz
  • Battery Capacity: 7AH/9AH/12AH/18AH
  • Input Voltage: 220V
  • Electricity Backup Solution: Provide continuous power supply during power failure
  • Continuous Power Source: Maintain a steady power supply even during electricity outages
  • Emergency Power Supply System: Provide emergency backup power when needed

Field of application:

Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.

Technical Parameters:

Model # DCT-60 DCT-120
Front panel mini dc ups
INPUT
Voltage range 100-240Vac
Input frequency 35-70Hz
OUTPUT
Output power(Max.) 60W(5A) 120W(10.0A)
Output power¤t(in common) 9Vdc(1A)+12Vdc*6(5A)+15/24Vdc POE(1A)
BATTERY
Battery type 12V 7AH 12V 9AH
PHYSICAL
Unit dimension (mm) 300*95*140
Net weight (1pc, kg) 2.8 3
ENVIRONMENT
Environment of performance Temperature 0℃~40℃, Humidity 20%~90%
Noise level Less than 40dB
*Product specifications are subject to change without further notice.

Applications:

G-Tech's PWM UPS is an ideal electricity backup solution for many applications. It's a powerful power supply back-up unit with a model number of PWM UPS. It is manufactured in China and features a type of PWM UPS with an input frequency of 50Hz/60Hz and an output frequency of 50Hz/60Hz. The transfer time is ≤10ms and the input voltage is 220V. It provides a reliable and efficient electricity back-up solution for many systems and applications, ensuring that no power interruptions occur.

The PWM UPS from G-Tech is suitable for a variety of applications, such as commercial buildings, industrial facilities, data centers, and more. It provides a reliable and efficient power supply back-up unit, ensuring that no power interruptions occur. It also features a transfer time of ≤10ms, making it an ideal solution for critical applications that require uninterrupted power. Moreover, the input voltage of 220V makes it a perfect choice for international applications.

G-Tech's PWM UPS is a reliable, efficient, and cost-effective electricity backup solution for many applications. It is designed to provide a reliable power supply back-up unit, ensuring that no power interruptions occur. Moreover, its transfer time of ≤10ms and input voltage of 220V make it a perfect choice for international applications. With its robust power back-up features, G-Tech's PWM UPS is the ideal solution for many businesses and organizations.



Performance characters:

1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
