ECO Series Uninterruptible Power Supply 100-240Vac Overload Protection CE Approval

ECO Series Uninterruptible Power Supply 100-240Vac Overload Protection CE Approval

dc power ups

mini ups 24v

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS/ISO

Model Number:

ECO series

Contact Us
Request A Quote
Product Details
Input Voltage:
100-240Vac
Transfer Time:
0 Ms
Noise Level:
Less Than 40dB
Battery:
Lithium Battery
Protection:
Overvoltage,overload
Product Name:
ECO Series Mini DC UPS 100-240Vac Overload Protection High Capacity Lithium Battery UPS
Payment & Shipping Terms
Minimum Order Quantity
500 pcs
Price
Negotiation
Packaging Details
Carton
Delivery Time
15-20 work days
Payment Terms
L/C, T/T, Western Union
Product Description

ECO series , high capacity lithium battery , high compatibility , suitable for most digital products in the market

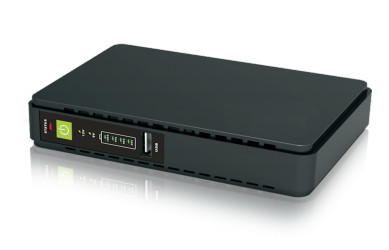

ECO Series Mini DC UPS 100-240Vac Overload Protection High Capacity Lithium Battery UPS



Features:

1. ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection high capacity lithium battery UPS Long Backup to the loads

2. High compatibiliity, suitable for most digital products in the market.

3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set(ECO-412P).

4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.

5. Built-in adapter allows wide AC voltage range(100-240Vac).



Specification:



Model

ECO
212 312 412 412P 1248P
Input Voltage 100-240Vac
Output

DC output Volatge

(optional )

5V/7.5V/9V/12V

5V/7.5V/9V/12V

5V/7.5V/9V/12V

9V/12V &

15V/24V (POE)





12V&48V(POE)

Voltage Select Choosing through the slide switch
Output Power(max) 12W 12W 12W&24W (total 36W) 12W&48W (total 60W)

Transfer

Time

0 ms
Battery
Type Lithium battery                                          Lead Acid battery

Qty &

Capacity

4400mAh 6600mAh         8800mAh 1.2V/2.3AH*1pc

Charging

Period

     Typical: 2-3 hours
Physical

Dimension

(mm)

                     165*105*26 108*183*29 268*144*51
Environment
Performance Temperature 0℃~40℃ ; Humanity20%~90%
Noise level Less than 40dB

Product specifications are subject to change without notice.ECO Series Uninterruptible Power Supply 100-240Vac Overload Protection CE Approval 0
