Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
ECO series

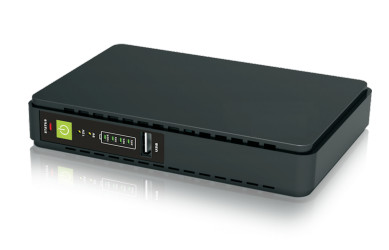

ECO Series Mini DC UPS 100-240Vac Overload Protection High Capacity Lithium Battery UPS
Features:
1. ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection high capacity lithium battery UPS Long Backup to the loads
2. High compatibiliity, suitable for most digital products in the market.
3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set(ECO-412P).
4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.
5. Built-in adapter allows wide AC voltage range(100-240Vac).
Specification:
| Model # | ECO Plus 412 | ECO Plus 412P | ECO Plus 412M | ||||||
| FEATURE: | |||||||||
| 1. High capacity lithium batteries, provides long backup to loads. | |||||||||

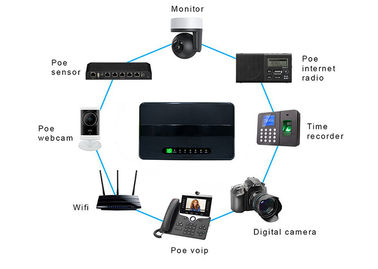

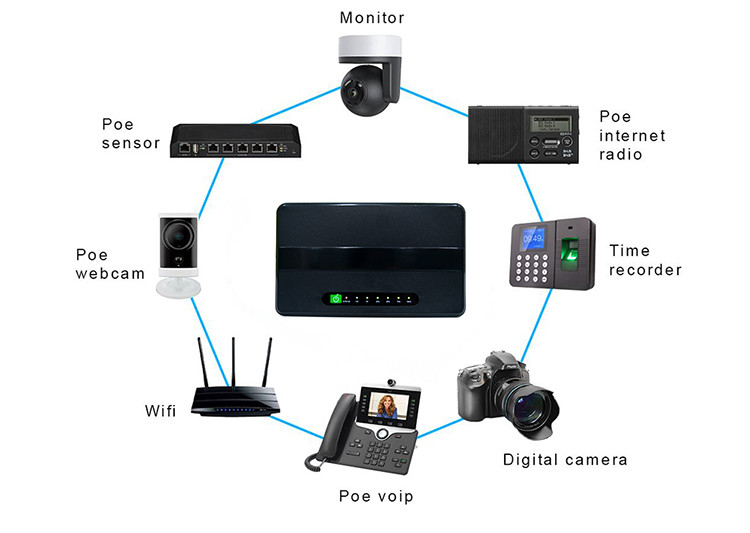

| 2. High compatibility, suitable for most digital products: monitor, POE Sensor, POE Webcam, WIFI, POE VOIP,Digital camera, time recorder, POE Internet Radio, etc. | |||||||||
| 3. Power Over Ethernet (POE) can transmit the data and power at the same time to simplify wire set (ECO Plus 412P). | |||||||||
| 4. Over-charging, over-discharging, short circuit protections. | |||||||||
| 5. Built-in adapter allows wide AC voltage range 100~240VAC. | |||||||||
| INPUT | |||||||||
| Input voltage | 100~240VAC | ||||||||
| OUTPUT | |||||||||
| DC Output voltage (optional) | USB & 9V/12V | USB, 9V/12V, 15V/24V (POE) | USB, 9V/12V, 15V/24V/36V/48V | ||||||

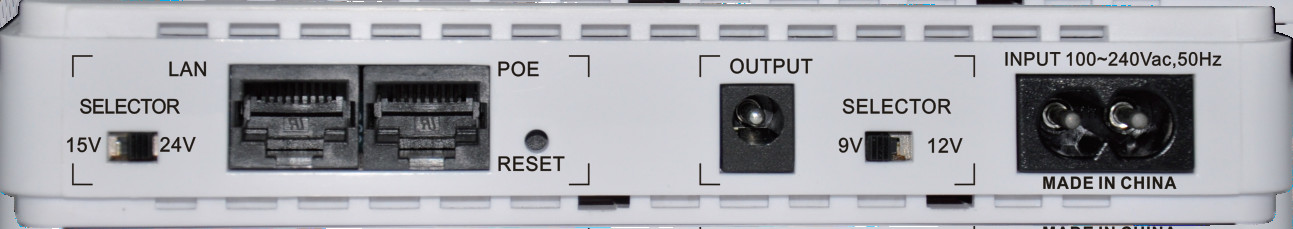

| Voltage select | Choosing through the slide switch | ||||||||
| Output power | 15W | ||||||||
| Transfer time | 0 ms | ||||||||
| BATTERY | |||||||||
| Battery type | Lithium battery | ||||||||
| QTY. & capacity of battery | 8800mah | ||||||||
| CHARGE | |||||||||
| Charge period | Typical: 2-3 Hours | ||||||||
| PHYSICAL | |||||||||
| Unit dimension (mm) | 159*104*28 | ||||||||
| Net weight (1pc, kg) | 0.4 | ||||||||
| ENVIRONMENT | |||||||||
| Environment of performance | Temperature 0℃~40℃, Humidity 20%~90% | ||||||||
| Noise level | Less than 40dB | ||||||||
| *Product specifications are subject to change without further notice. | |||||||||
Factory Profile:
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
