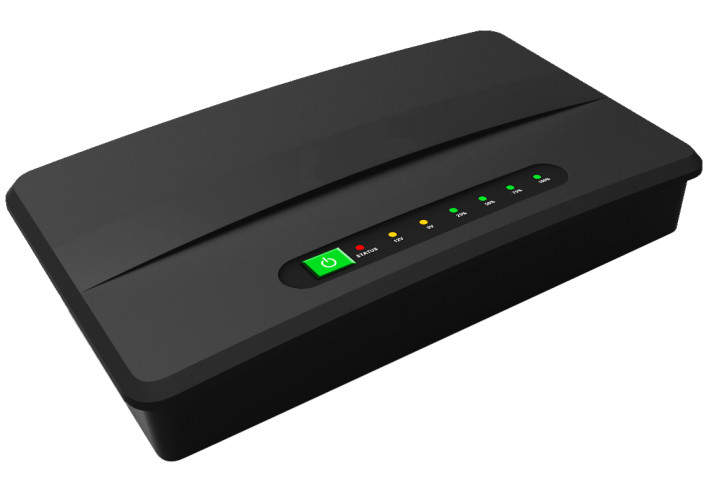

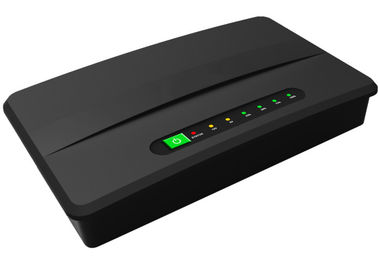

POE ECO Series 100-240Vac DC 8800mAh Lithium Battery UPS

  • POE ECO Series 100-240Vac DC 8800mAh Lithium Battery UPS
Place of Origin China
Brand Name G-tech
Certification CE/RoHS/ISO
Model Number ECO series
Minimum Order Quantity 500 pcs
Price Negotiation
Packaging Details Carton
Delivery Time 15-20 work days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ECO Series Mini DC UPS 100-240Vac Overload Protection High Capacity Lithium Battery UPS Input Voltage 100-240Vac
Transfer Time 0 Ms Noise Level Less Than 40dB
Battery Lithium Battery Protection Over Voltage,overload
Highlight

POE ECO DC Power UPS

,

8800mAh Lithium Battery DC UPS
Leave a Message
Product Description

ECO series , high capacity lithium battery , high compatibility , suitable for most digital products in the market

Mini DC UPS, 100-240Vac, Overload Protection, High Capacity Lithium Battery UPS

Features:

1. ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection high capacity lithium battery UPS Long Backup to the loads

2. High compatibiliity, suitable for most digital products in the market.

3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set(ECO-412P).

4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.

5. Built-in adapter allows wide AC voltage range(100-240Vac).



Specification:



Model

 ECO
212 312 412 412P 1248P
Input Voltage 100-240Vac
Output

DC output Volatge

(optional )

5V/7.5V/9V/12V

5V/7.5V/9V/12V

5V/7.5V/9V/12V

9V/12V &

15V/24V (POE)





12V&48V(POE)
Voltage Select Choosing through the slide switch
Output Power(max) 12W 12W 12W&24W (total 36W) 12W&48W (total 60W)

Transfer

Time

 0 ms
Battery
Type Lithium battery                                          Lead Acid battery

Qty &

Capacity

 4400mAh 6600mAh         8800mAh 1.2V/2.3AH*1pc

Charging

Period

      Typical: 2-3 hours
Physical

Dimension

(mm)

                      165*105*26 108*183*29 268*144*51
Environment
Performance Temperature 0℃~40℃ ; Humanity20%~90%
Noise level Less than 40dB

Product specifications are subject to change without notice.POE ECO Series 100-240Vac DC 8800mAh Lithium Battery UPS 0

POE ECO Series 100-240Vac DC 8800mAh Lithium Battery UPS 1
