Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
ECO series
Features:

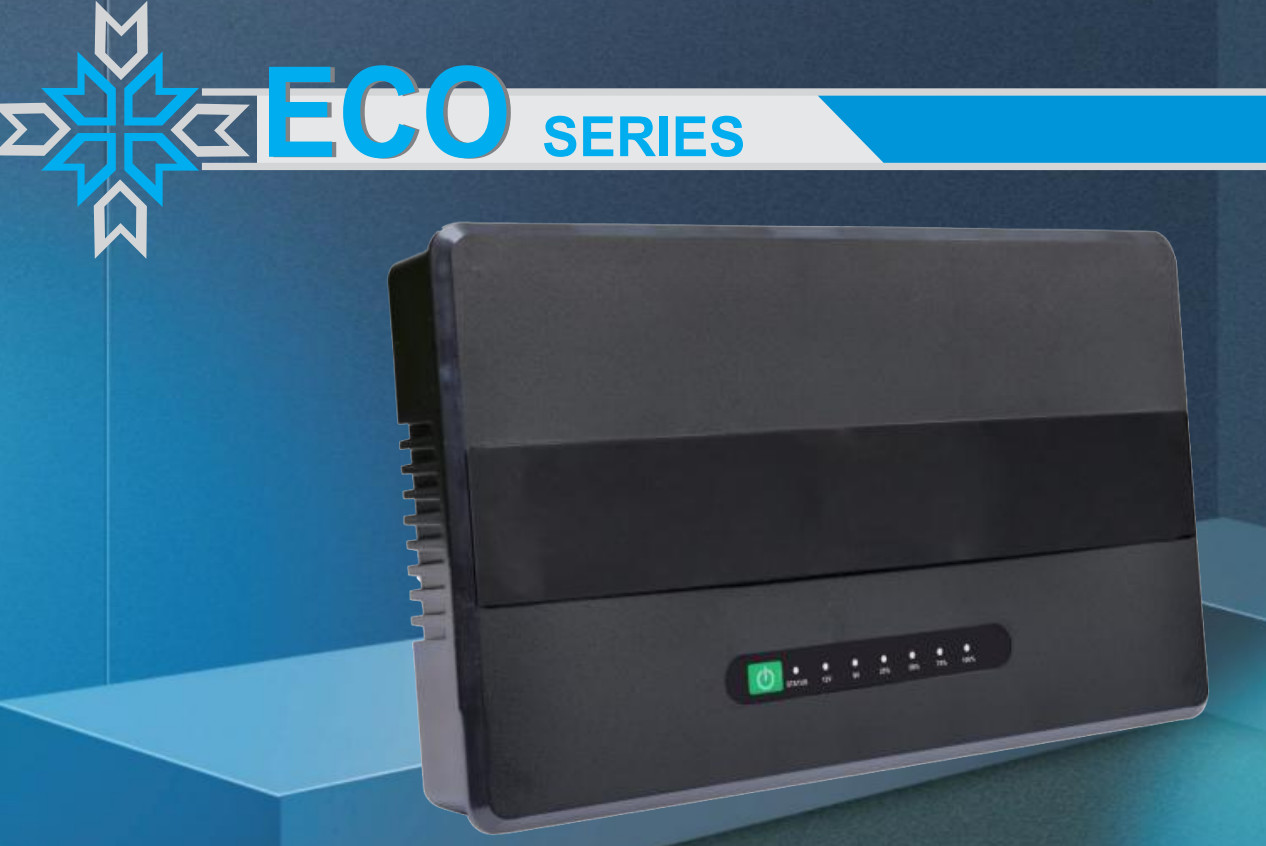

1. ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection high capacity lithium battery UPS Long Backup to the loads
2. High compatibiliity, suitable for most digital products in the market.
3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set(ECO-412P).
4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.
5. Built-in adapter allows wide AC voltage range(100-240Vac).
Specification:
|
Model |
ECO | |||||||||||||||
| 212 | 312 | 412 | 412P | 1248P | ||||||||||||
| Input Voltage | 100-240Vac | |||||||||||||||
| Output | ||||||||||||||||
|
DC output Volatge (optional ) |
5V/7.5V/9V/12V |
5V/7.5V/9V/12V |
5V/7.5V/9V/12V |
9V/12V & 15V/24V (POE) |
12V&48V(POE) |
|||||||||||
| Voltage Select | Choosing through the slide switch | |||||||||||||||
| Output Power(max) | 12W | 12W | 12W&24W (total 36W) | 12W&48W (total 60W) | ||||||||||||
|
Transfer Time |
0 ms | |||||||||||||||
| Battery | ||||||||||||||||
| Type | Lithium battery | Lead Acid battery | ||||||||||||||
|
Qty & Capacity |
4400mAh | 6600mAh | 8800mAh | 1.2V/2.3AH*1pc | ||||||||||||
|
Charging Period |
Typical: 2-3 hours | |||||||||||||||
| Physical | ||||||||||||||||
|
Dimension (mm) |
165*105*26 | 108*183*29 | 268*144*51 | |||||||||||||
| Environment | ||||||||||||||||
| Performance | Temperature 0℃~40℃ ; Humanity20%~90% | |||||||||||||||
| Noise level | Less than 40dB | |||||||||||||||
Product specifications are subject to change without notice.
