Li - Ion Battery 12v 30W 6600mAh Portable DC UPS

Li - Ion Battery 12v 30W 6600mAh Portable DC UPS

6600mAh Portable DC UPS

30W Portable DC UPS

Li - Ion Battery POE Lithium UPS

Place of Origin:


Brand Name:




Model Number:

ECO series

Contact Us
Request A Quote
Product Details
Input Voltage:
Transfer Time:
<10 Ms
Noise Level:
Less Than 40dB
Lithium Battery, Li-ion Battery
Overvoltage, Overload, Short Circuit
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
export deigned packing
Delivery Time
15-20 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability
100000 per month
Product Description


Mini DC UPS with high quality li-ion battery can be used to uninterruptible power to net work equipment like modem, router, CCTV, but also can be used to charge smart phones, other digital devicesm, etc.


1. ECO Series Mini DC UPS 100-240Vac With Overload,Overvoltage, Short Circuit Protection,

high capacity lithium battery UPS Long Backup to the loads

2. High compatibiliity, suitable for most digital products in the market.

3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set.

4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.

5. Built-in adapter allows wide AC voltage range(100-240Vac).

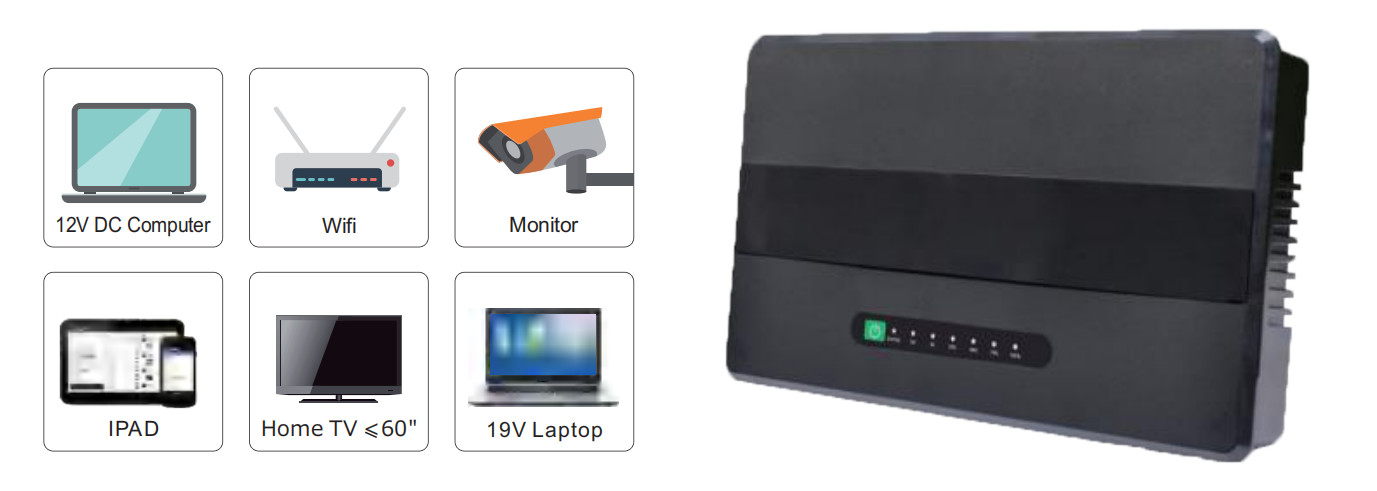

Fields of application


24v dc ups

Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.





212 312 412 412P 1248P
Input Voltage 100-240Vac

DC output Volatge

(optional )




9V/12V &

15V/24V (POE)




Voltage Select Choosing through the slide switch
Output Power(max) 12W 12W 12W&24W (total 36W) 12W&48W (total 60W)



0 ms
Type Lithium battery                                          Lead Acid battery

Qty &


4400mAh 6600mAh         8800mAh 1.2V/2.3AH*1pc



     Typical: 2-3 hours



                     165*105*26 108*183*29 268*144*51
Performance Temperature 0℃~40℃ ; Humanity20%~90%
Noise level Less than 40dB

Product specifications are subject to change without notice.

Li - Ion Battery 12v 30W 6600mAh Portable DC UPS 1

Li - Ion Battery 12v 30W 6600mAh Portable DC UPS 2

Performance Characteristics
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.


2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.


3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.


4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.


5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.


6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.


7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.


8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.


9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
