Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
ECO series

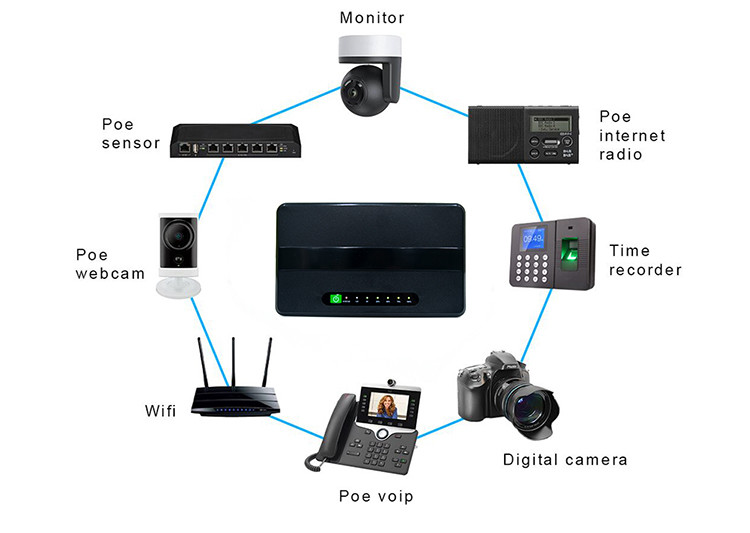

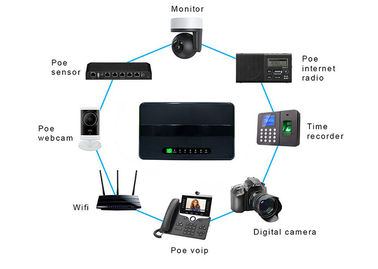

Application: Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
Features:
1. ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection high capacity lithium battery UPS Long Backup to the loads
2. High compatibiliity, suitable for most digital products in the market.
3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set(ECO-412P).
4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.
5. Built-in adapter allows wide AC voltage range(100-240Vac).
| Specification: | |||||
| INPUT | |||||
| Input voltage | 100~240VAC | ||||
| OUTPUT | |||||
| Output voltage (optional) | 5V+USB | 9V /12V | 15V /24V | ||
| Output power | 18W | ||||
| Transfer time | 0 ms | ||||
| Voltage select | Choosing through the slide switch | ||||
| BATTERY | |||||
| Battery type | Lithium battery | ||||
| QTY. & capacity of battery | 8800mah | ||||
| Charge | |||||
| Charge period | Typical: 2-3 Hours | ||||
| USB | DC 5V/1.0A | ||||
| PHYSICAL | |||||
| Unit dimension (mm) | 159*104*28 | ||||
| Net weight (1pc, kg) | 0.4 | ||||
| ENVIRONMENT | |||||
| Environment of performance | Temperature 0℃~40℃, Humidity 20%~90% | ||||
|
*Product specifications are subject to change without further notice.
|
|||||
