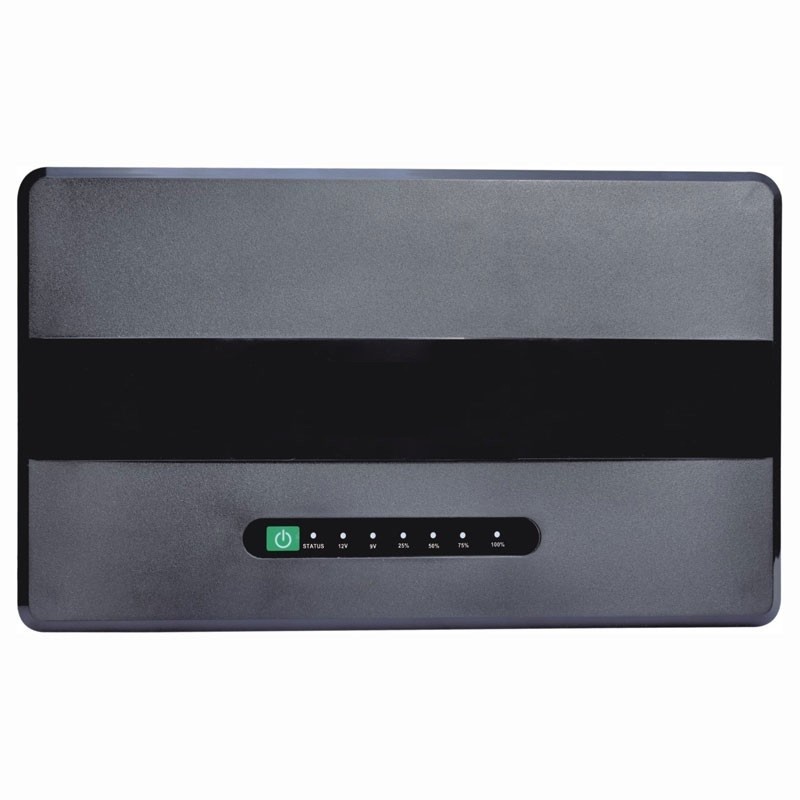

100W 12000 MAh Mini DC UPS
We are a specialized manufacturer of DC UPS, for over 18 years. ECO PLUS 8100 and ECO PLUS 8100P are the new series of DC UPS, but they have advanced and stable technology. Both of them have the battery management system, providing long back-up time and long service life.
This 100W mini DC UPS is with battery long back-up system, as uninterruptible power supply for Laptop or 19V DC computer, CCTV, WIFI, LCD Monitor and DVR(Digital Video Record).
Application: Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
Mini DC UPS, 100-240Vac, Overload Protection, High Capacity Lithium Battery UPS
| Model # |
ECO PLUS 8100P |
ECO PLUS 8100 |
| INPUT |
| Input rated operating voltage range |
100-240Vac |
| OUTPUT |
| Output power(Max.) |
100W |
| Output current |
5.0A |
3.0A |
1.0A |
2.0A |
5.0A |
3.0A |
5.0A |
2.0A |
| Output power |
60W |
36W |
24W |
10W |
60W |
36W |
95W |
10W |

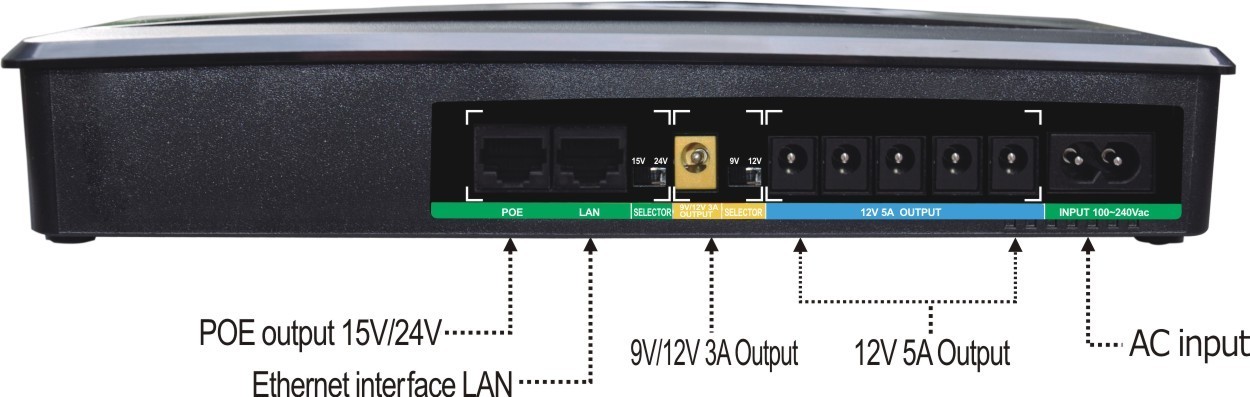

| DC output power¤t(in common) |
12V*5 |
9V/12V |
15V/24V |

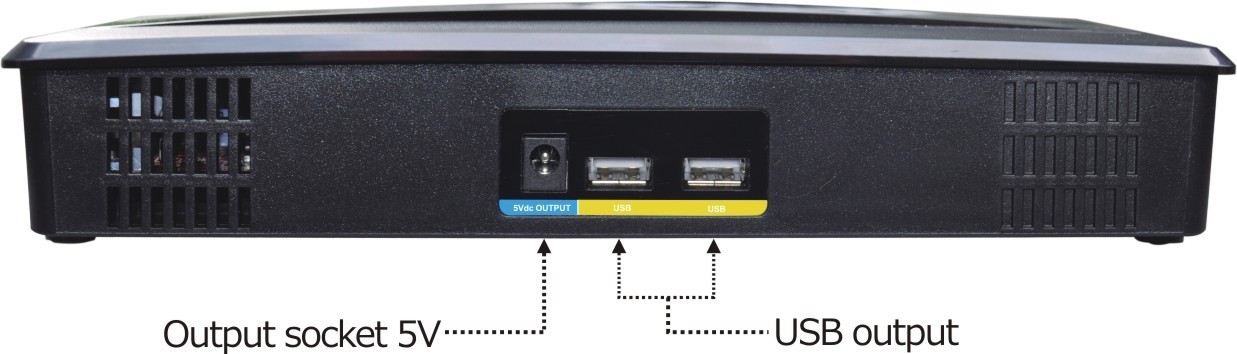

5V+2*USB |
12V*5 |
9V/12V |
15V/24V |
5V+2*USB |
| BATTERY |
| Battery type |
LiFePO4 battery |
| QTY. & capacity of battery |
3.2V/1800mAH*8 (50WH) |
| Protect |
BMS(overcharging, over-discharge, over-current, over-temperature protection and battery blanced |
| Charge |
| Charge period |
Typical: 3-4 Hours |
| PHYSICAL |
| Unit dimension (mm) |
2638*156*40 |
| Net weight (1pc, kg) |
0.7 |
| ENVIRONMENT |
| Environment of performance |
Temperature 0℃~40℃, Humidity 20%~90% |
| Noise level |
Less than 40dB |
| *Product specifications are subject to change without further notice. |
| Performance Characteristics |
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
