Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
NPS Series
Long Cycle Mini DC UPS Uninterruptible Power Supply With LiFePO4 Battery
Mini DC UPS with high quality li-ion battery can be used to uninterruptible power to net work equipment like modem, router, CCTV, but also can be used to charge smart phones, other digital devicesm, etc.
Mini DC UPS Uninterruptible Power Supply With LiFePO4 Battery
Features of Mini DC UPS NPS Series:
1. Continuous monitoring of battery capacity;
2. Batteries keep the power standby and gentle battery charging;
3. Mini DC UPS with compact size and high power performance;
4. Long Cycle LiFePO4 batteries, provides long backup to the loads;
5. High compatibility, suitable for most digital products in the market;
6. Smart built-in adapter makes charging more easier;
7. Reliability and great technology design for Network Video Recorder devices

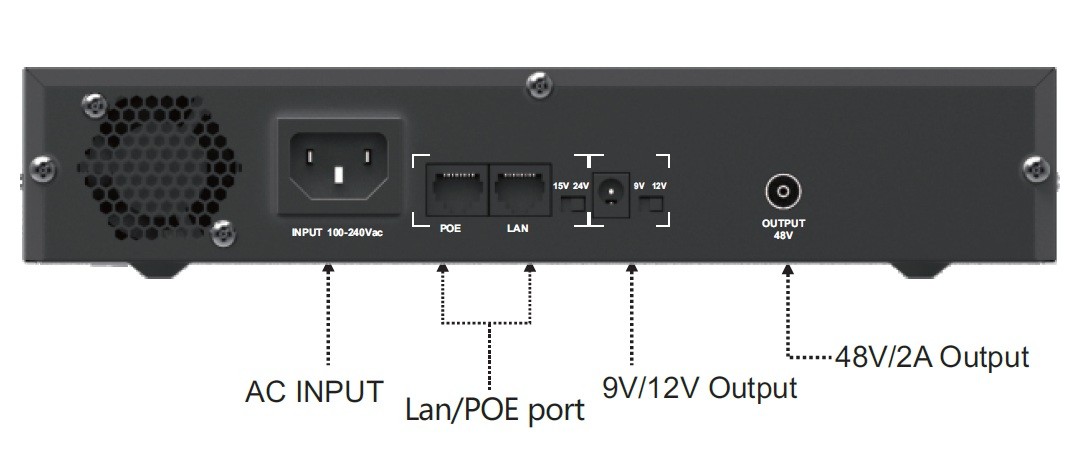

This mini dc ups features with UPB port,5V, 9V, 12V DC output port and also with POE port, can be used for most device friendly.
Fields of application |
Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
Mini DC UPS Specification:
Model # |
NPS 2048 |
NPS 8012 |
NPS5019 |
||||||||

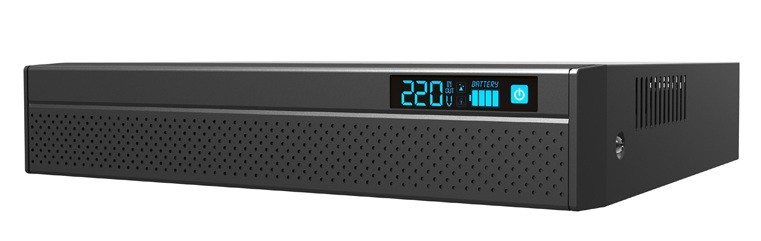

Front panel |
|
||||||||||
INPUT |
|||||||||||
Input rated operating voltage range |
100~240VAC/50HZ~60HZ |
||||||||||
OUTPUT |
|||||||||||
Output power(Max.) |
100W |
||||||||||
Output |
DC interface |
POE interface |
DC interface |
POE interface |
DC interface |
||||||
Output voltage |
9/12Vdc |
48Vdc |
15Vdc/24Vdc |
9/12Vdc |
12Vdc X10 |
15Vdc/24Vdc |
9/12Vdc |
12Vdc X10 |
19Vdc |
||
Voltage polarity |
|
+4,5pins -7,8pins |
|
+4,5pins -7,8pins |
|
||||||
Output power & current (in common) |
3.0A/(9V27W)or(12V36W) |
2.0A/100W |
1.0A/(15V15W)or(24V24W) |
3.0A/(9V27W)or(12V36W) |
8.0A /100W |
1.0A/(15V15W)or(24V24W) |
3.0A or(12V36W) /(9V27W) |
8.0A /100W |
5.0A /96W |
||
BATTERY |
|||||||||||
Battery type |
LiFePO4 battery |
||||||||||
QTY. & capacity of battery |
75WH |
||||||||||
Protect |
BMS(overcharging, over-discharge, over-current, over-temperature protection and battery blanced |
||||||||||
Charge |
|||||||||||
Charge period |
Typical: 3-4 Hours |
||||||||||
PHYSICAL |
|||||||||||
Unit dimension (mm) |
258*225.5*49 |
||||||||||
Net weight (1pc, kg) |
1.6 |
||||||||||
ENVIRONMENT |
|||||||||||
Environment of performance |
Temperature 0℃~40℃, Humidity 20%~90% |
||||||||||
Noise level |
Less than 40dB |
Product specifications are subject to change without notice.
Performance Characteristics |
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
We are a specialized manufacturer of DC UPS, for over 20 years.
NPS2408 and NPS8012 are the new series of DC UPS, but hey have advanced and stable technology.
This mini DC UPS is with battery back-up system, as uninterruptible power supply for CCTV, WIFI, LCD Monitor and NVR(Network Video Recorder).
Wifi remote function ( optional ):
This mini dc ups support wifi remote monitoring( optional), which support users through APP on mobiles or ipads to monitor the running state of the UPS in real time, easily grasp the running state of the UPS like remaining backup time and so on.
