Place of Origin:
China
Brand Name:
G-TECH
Certification:
CE/RoHS/ISO
Model Number:
ECO Series

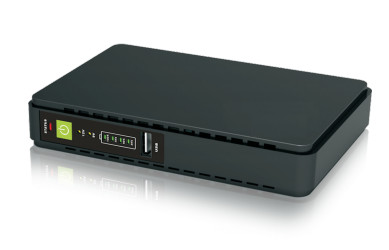

High Compatibility 40dB Mini DC UPS High Capacity Lithium Battery
DC UPS high capacity lithium battery , provides long backup to loads
Mini DC UPS 5V/9V/12V/15V/24V/36V/48V
1. High capacity lithium batteries, provides long backup to the loads
2. High compatibility, suitable for most digital products in the market
3. Power Over Ethernet (PoE) can transmit the data and power at the same time to simplify wireset (ECO-440P)
4. Intelligent circuit design with over-charging, over-discharging and short circuit protections
Specification:
Model (ECO) |
212 |
312 |
412 |
1248P |
412P |
418 |
418PRO |
430PRO |
INPUT |
|
|||||||
Input Voltage |
100-240Vac |
|||||||
Output |
|
|||||||
DC Output Voltage (optional) |
5V/7.5V/9V/12V (POE)
|
12V&48V (POE)
|
9V/12V & 15V/24V (POE) |
5V+USB 2A 9V/12V 1A 15V/24V 0.5A ( POE )
|
5V+USB 2A 9V 2A 12V 2A 15V/24V 1A ( POE )
|
|||
Voltage Select |
Choosing through the slide switch |
|||||||
Output Power |
12W |
12W&24W (total 36W) |
12W&48W (total 60W) |
18W |
30W |
|||
Transfer Time |
0 ms |
|||||||
Battery |
|
|||||||
Battery Type |
Lithium battery |
Lead Acid |
Lithium battery |
LiFePo4 |
||||
Capacity |
4400 mah |
6600mah |
8800mah |
12v/2.3Ah *1PC |
8800mah |
7200mah |
||
Cycle life |
|
|
|
|
|
300 cycles |
1000cycles |
|
Charge |
|
|||||||
Charging Period |
Typical: 2-3 Hours |
|||||||
Physical |
|
|
||||||
Unit Dimension (mm) |
165*105*26
|
268*144*51 |
108*183*29 |
159*108*28 |
||||
Net Weight (kg) |
0.28 |
0.36 |
1.6 |
0.62 |
0.4 |
|||
Enviroment |
|
|||||||
Performance |
Temperature degree Celsius |
|||||||
Noise level |
Less than 40dB |
Product specifications are subject to change without notice.
Advantages of Mini DC UPS (Mini DC Uninterruptible Power Supply) include:
No need for manual intervention: Mini DC UPS can automatically detect the power condition of the main power supply, and when the main power supply fails, it can automatically switch to the backup power supply to achieve uninterrupted power supply without manual intervention.
Small size: Compared with traditional UPS, Mini DC UPS is smaller, lighter and more portable, suitable for occasions that require mobile equipment.
Easy installation: Mini DC UPS is easy to install, without large-scale modification and commissioning, just plug in the main power supply and backup power supply.
High stability: Mini DC UPS adopts advanced power management technology and high-quality batteries, which can ensure stable output voltage and current, and long-term backup power supply.
Affordable: Compared with traditional UPS, Mini DC UPS has lower cost and is more economical, suitable for small and medium-sized enterprises or home users.
