100Vac 240Vac High Capacity Lithium Ion Battery Mini DC Power UPS

100Vac 240Vac High Capacity Lithium Ion Battery Mini DC Power UPS

240Vac High Capacity Lithium Ion Battery

100Vac DC Power UPS

100Vac Lithium UPS

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS/ISO

Model Number:

ECO series

Contact Us
Request A Quote
Product Details
Colour:
Customized
Input Voltage:
100-240Vac
Name:
Mini DC UPS
Noise Level:
Less Than 40dB
Battery:
Lithium Battery
Protection:
Overvoltage,overload
Payment & Shipping Terms
Minimum Order Quantity
500 pcs
Price
Negotiation
Packaging Details
Carton
Delivery Time
15-20 work days
Payment Terms
L/C, T/T, Western Union
Product Description

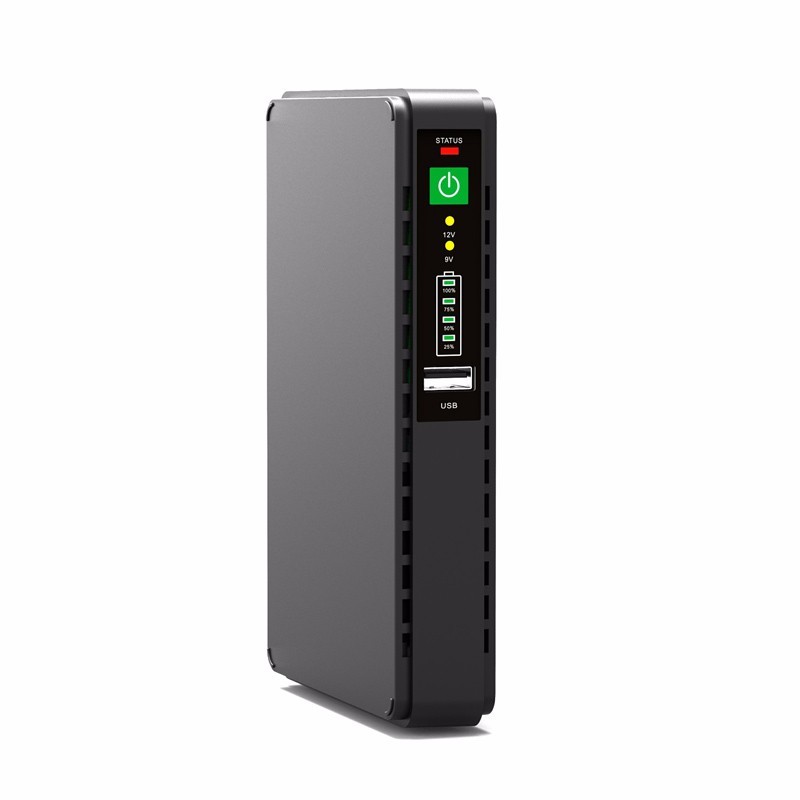

100Vac 240Vac High Capacity Lithium Ion Battery Mini DC Power UPS



high capacity lithium battery , high compatibility , suitable for most digital products



Specification:



Model

ECO Plus

212

415

415P

430P

430M

430S

860

1660

Input Voltage

100-240Vac

Output

DC output Volatge

(optional )

USB 1.5A

9/12V 1A

5V+USB 2A

9V/12V 1A

12V 1A

5V USB 2A

9V/12V 1A

15V/24V

0.5A (POE)

5V USB 2A

9V/12V 2A

15V/24V

1A (POE)

5V USB 2A

9V/12V 2A

12Vx4 2A

5V USB 2A

9V/ 12Vx4 2A

Solar input

5V USBx2 2A

9V/ 12V 2A

15V/24V(POE) 1A

12Vx4 5A

Solar input 2A

Voltage Select

Choosing through the slide switch

Output Power(max)

12W

15W

30W

60W

Transfer

Time

0 ms

Battery

Type

Lithium battery

Qty &

Capacity

6700mAh

8800mAh

2200mAhX8

2200mAhX16

Charging

Period

1-2 hours

2-3 hours

4-5 hours

Physical

Dimension

(mm)

141.5*84.5*35

180*106*29

258*152*46

Net

Weight(kg)

0.3

0.4

0.94

1.28

Environment

Performance

Temperature 0℃~40℃ ; Humanity20%~90%

Noise level

Less than 40dB



Feature

1> High capacity lithium batteries, provides long backup to the loads. 2> High compatibility, suitable formost digital products in the market. 3> POE can transmit power and simplify wiring.

4> Intelligent circuit design with over-charging, over-discharging and

short circuit protections.

5> Built-in adapter allows wide AC voltage range(100~240Vac)6> Solar panel is acceptable for the input interface.



Product specifications are subject to change without notice.100Vac 240Vac High Capacity Lithium Ion Battery Mini DC Power UPS 0
