5Ah-100Ah Backup ECO Mini DC UPS Uninterruptible Power Source

5Ah-100Ah Backup ECO Mini DC UPS Uninterruptible Power Source

ECO Mini DC UPS

Backup Mini DC UPS

Mini DC Uninterruptible Power Source

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE ROHS ISL UL

Model Number:

ECO

Contact Us
Request A Quote
Product Details
Battery Capacity:
5Ah-100Ah
Charging Voltage:
100V-240V
Charging Period:
2~3Hours
Product Name:
Mini DC UPS
Protection:
Overload/Short Circuit/Over Temperature/Reverse Polarity
Working Temperature:
0℃~+40℃
Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000pcs
Product Description

Product Description:

Introducing the ECO Mini Uninterruptible Power Source, the most economic mini uninterruptible power module available. This highly reliable and efficient mini uninterruptible power backup is designed to provide power to devices during power outages or surges. It is equipped with the latest technology and features to ensure maximum power performance. It has a wide operating temperature range of 0℃ ~ +40℃, and is protected from overload, short circuit, over temperature and reverse polarity. Its battery capacity ranges from 5Ah to 100Ah, and it can be charged by voltage from 100V to 240V. The Economic Mini Uninterruptible Power Backup is perfect for any commercial or residential application, and is the ideal choice for those seeking a reliable, cost-effective power solution.

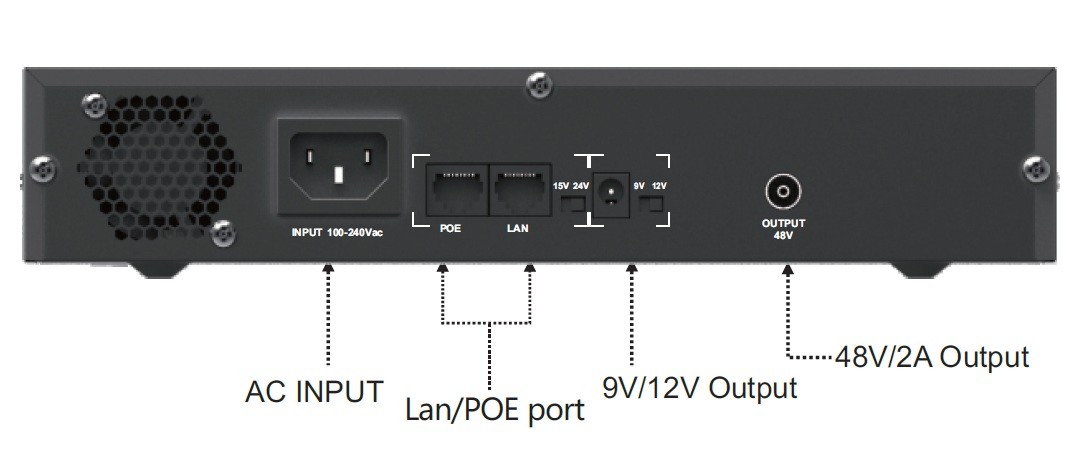

5Ah-100Ah Backup ECO Mini DC UPS Uninterruptible Power Source 0

Features:

  • Product Name: ECO Mini Uninterruptible Power System
  • Working Temperature: 0℃~+40℃
  • Charging Voltage: 100V-240V
  • Charging period: 2~3Hours
  • Protection: Overload/Short Circuit/Over Temperature/Reverse Polarity
  • Economic Mini Uninterruptible Power Backup
Specification:



Model

(ECO)



212



312



412



1248P



412P



418



418PRO



430PRO

INPUT
Input Voltage 100-240Vac
Output
DC Output Voltage (optional)



5V/7.5V/9V/12V

(POE)





12V&48V

(POE)





9V/12V &

15V/24V

(POE)



5V+USB 2A

9V/12V 1A

15V/24V 0.5A

( POE )



5V+USB 2A

9V 2A

12V 2A

15V/24V 1A

( POE )



Voltage Select Choosing through the slide switch

Output

Power

12W

12W&24W

(total 36W)

12W&48W

(total 60W)

18W 30W
Transfer Time 0 ms
Battery
Battery Type Lithium battery Lead Acid Lithium battery LiFePo4
Capacity

4400

mah

6600mah 8800mah

12v/2.3Ah

*1PC

8800mah 7200mah
Cycle life           300 cycles 1000cycles
Charge
Charging Period Typical: 2-3 Hours
Physical



Unit Dimension

(mm)





165*105*26









268*144*51





108*183*29





159*108*28

Net Weight

(kg)



0.28



0.36



1.6



0.62



0.4

Enviroment
Performance Temperature degree Celsius
Noise level Less than 40dB


Applications:

G-Tech ECO Mini DC UPS is a perfect economic mini uninterruptible power station with a working temperature of 0℃~+40℃. It is equipped with a battery capacity of 5Ah-100Ah and a charging voltage of 100V-240V. With its fast charging period of 2~3 hours, this mini power station ensures that your electronic devices are always connected to the power supply. It is ideal for a wide range of applications, from home or office use to industrial applications. Its compact and lightweight design makes it easy to carry and transport from one place to another. In addition, it is highly energy-efficient and provides a reliable and safe power source. G-Tech ECO Mini DC UPS is the perfect solution for reliable and cost-effective electricity supply for your home or business.



Customization:

Economic Mini Uninterruptible Power Equipment
  • Brand Name: G-Tech
  • Model Number: ECO
  • Place of Origin: China
  • Working Temperature: 0℃~+40℃
  • Charging Voltage: 100V-240V
  • Protection: Overload/Short Circuit/Over Temperature/Reverse Polarity
  • Product Name: Mini DC UPS
  • Battery Capacity: 5Ah-100Ah

ECO Mini Uninterruptible Power Unit is a specialized mini uninterruptible power equipment with excellent performance. It adopts advanced technology to provide reliable and economic power protection for various applications. The product features wide input voltage range, overload, short circuit, over temperature and reverse polarity protections. It is widely used in various industrial, commercial and household applications.

ECO Mini Uninterruptible Power Source is equipped with 5Ah-100Ah battery capacity. It is suitable for 0℃~+40℃ working temperature and 100V-240V charging voltage. It is a reliable and economic mini uninterruptible power equipment with excellent performance.



Packing and Shipping:

Packaging and Shipping

Mini DC UPS is packaged and shipped in a box that contains the product, a user manual, necessary cables, and other accessories. The box is labeled with product information, handling instructions, and cautions.

The box is designed to protect the product during transit and should be handled with care. The product should be inspected upon receipt for any damage that may have occurred during shipping.

If the product is found to have been damaged during shipping, please contact the shipping company immediately to file a claim.



FAQ:

Q1: What is the brand name and model number of this Mini DC UPS?

A1: This Mini DC UPS is G-Tech ECO, model number ECO, Made in China.

Q2: What is the output power of this Mini DC UPS?

A2: This Mini DC UPS has a maximum output power of 300W.

Q3: What is the input voltage range of this Mini DC UPS?

A3: This Mini DC UPS accepts input voltage range from 12V to 30V.

Q4: What is the battery capacity of this Mini DC UPS?

A4: This Mini DC UPS is equipped with a 5Ah rechargeable battery.

Q5: What is the working temperature range of this Mini DC UPS?

A5: This Mini DC UPS is designed to work between -10°C and 45°C.

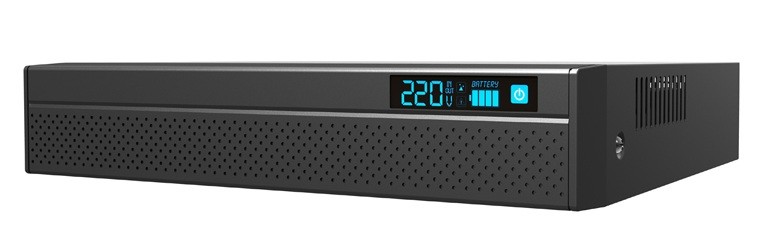

5Ah-100Ah Backup ECO Mini DC UPS Uninterruptible Power Source 1
