Economic 100V-240V Mini Uninterruptible Power Device 5Ah-100Ah Overload/Short Circuit/Over Temperature/Reverse Polarity

Economic 100V-240V Mini Uninterruptible Power Device 5Ah-100Ah Overload/Short Circuit/Over Temperature/Reverse Polarity

Place of Origin:

China

Brand Name:

ODM

Certification:

CE ROHS

Model Number:

ECO

Contact Us
Request A Quote
Product Details
Product Name:
Long Mini DC UPS
Charging Voltage:
100V-240V
Working Temperature:
0℃~+40℃
Protection:
Overload/Short Circuit/Over Temperature/Reverse Polarity
Battery Capacity:
5Ah-100Ah
Charging Period:
2~3Hours
Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000pcs
Product Description

Product Description:

The Long Mini DC UPS is an economic mini uninterruptible power backup, providing reliable power supply for critical systems. It is a highly efficient and reliable device, able to operate in a wide range of environments. This mini uninterruptible power device features an efficient charging period of 2 to 3 hours, and supports charging voltages from 100V to 240V. It comes with a range of protection features, such as overload, short circuit, over temperature, and reverse polarity protection. With battery capacity of 5Ah to 100Ah, this eco mini uninterruptible power source is ideally suited for small systems requiring reliable power source.

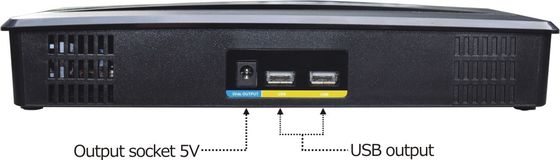

Economic 100V-240V Mini Uninterruptible Power Device 5Ah-100Ah Overload/Short Circuit/Over Temperature/Reverse Polarity 0

Features:

  • Product Name: Long Mini DC UPS
  • Working Temperature: 0℃~+40℃
  • Charging Voltage: 100V-240V
  • Charging period: 2~3Hours
  • Battery Capacity: 5Ah-100Ah
  • Economic Mini Uninterruptible Power Device
  • ECO Mini Uninterruptible Power Supply
  • Economic Mini Uninterruptible Power Station


Technical Parameters:

Specification:



Model

ECO Plus
212 415 415P 430P 430M 430S 860 1660
Input Voltage 100-240Vac
Output

DC output Volatge

(optional )

USB 1.5A

9/12V 1A

5V+USB 2A

9V/12V 1A

12V 1A

5V USB 2A

9V/12V 1A

15V/24V

0.5A (POE)

5V USB 2A

9V/12V 2A

15V/24V

1A (POE)

5V USB 2A

9V/12V 2A

12Vx4 2A

5V USB 2A

9V/ 12Vx4 2A

Solar input

5V USBx2 2A

9V/ 12V 2A

15V/24V(POE) 1A

12Vx4 5A

Solar input 2A

Voltage Select Choosing through the slide switch
Output Power(max) 12W 15W 30W 60W

Transfer

Time

0 ms
Battery
Type Lithium battery

Qty &

Capacity

6700mAh 8800mAh 2200mAhX8 2200mAhX16

Charging

Period

1-2 hours 2-3 hours 4-5 hours
Physical

Dimension

(mm)

141.5*84.5*35 180*106*29 258*152*46

Net

Weight(kg)

0.3 0.4 0.94 1.28
Environment
Performance Temperature 0℃~40℃ ; Humanity20%~90%
Noise level Less than 40dB

Product specifications are subject to change without notice.

Applications:

ODM ECO Mini Uninterruptible Power Backup is an economic solution to provide uninterrupted power supply for your home or office. This mini uninterruptible power unit is designed to work within a temperature range of 0℃~+40℃ and can be charged within a period of 2~3 hours. Its battery capacity ranges from 5Ah-100Ah and the charging voltage is 100V-240V. It also has various protection features such as overload, short circuit, over temperature and reverse polarity. This economic mini uninterruptible power module is the perfect choice for reliable and uninterrupted power supply.

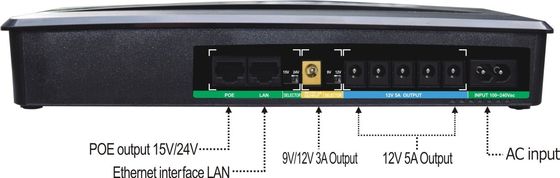

Economic 100V-240V Mini Uninterruptible Power Device 5Ah-100Ah Overload/Short Circuit/Over Temperature/Reverse Polarity 1

Packing and Shipping:

Packaging and Shipping for Mini DC UPS

Mini DC UPS are carefully packaged and shipped to ensure that they arrive safely and securely. All packaging materials used are of the highest quality and designed to protect the Mini DC UPS from damage during shipping.

The Mini DC UPS is packaged in a corrugated box with an interior cushioning material to provide additional protection. The box is then sealed with tape to keep the contents secure. A packing slip is included inside the box that displays the customer's name and address.

The Mini DC UPS is shipped using a reliable carrier that provides tracking information and delivery confirmation. Delivery times will vary depending on the destination. The customer is responsible for any import/export taxes or duties that may be incurred.



FAQ:

Q: What is Mini DC UPS?
A: Mini DC UPS is an innovative Uninterruptible Power Supply (UPS) product manufactured by ODM, with model number ECO, originating in China.
Q: What is the main purpose of Mini DC UPS?
A: Mini DC UPS is designed to provide a reliable power source and protect connected systems from power outages or fluctuations.
Q: What are the key features of Mini DC UPS?
A: Mini DC UPS features built-in battery backup, surge protection, and an efficient power management system.
Q: What are the power requirements of Mini DC UPS?
A: Mini DC UPS requires an AC input voltage of 95-265V and a power capacity of 150W.
Q: What is the warranty coverage for Mini DC UPS?
A: ODM offers a standard 1-year warranty for Mini DC UPS.
