Place of Origin:
China
Brand Name:
OEM
Certification:
CE, ISO，SGS
Model Number:
DC

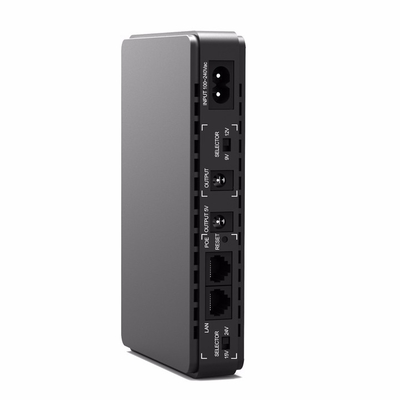

The ECO Mini Uninterruptible Power Unit (DC UPS) is an economic mini uninterruptible power device that provides a reliable power source for 12W to 60W DC applications. This product offers protection against overload, short circuit, over temperature, and reverse polarity. It is equipped with a lithium battery and has a charging period of 2-3 hours.
The ECO Mini Uninterruptible Power Unit (DC UPS) is perfect for a wide range of applications, including industrial, automotive, medical, and domestic. It is designed to provide a reliable and safe power source for your devices. This product is ideal for those who need reliable power for their devices.
Specification:
|
Model |
ECO Plus | |||||||
| 212 | 415 | 415P | 430P | 430M | 430S | 860 | 1660 | |
| Input Voltage | 100-240Vac | |||||||
| Output | ||||||||
|
DC output Volatge (optional ) |
USB 1.5A 9/12V 1A |
5V+USB 2A 9V/12V 1A 12V 1A |
5V USB 2A 9V/12V 1A 15V/24V 0.5A (POE) |
5V USB 2A 9V/12V 2A 15V/24V 1A (POE) |
5V USB 2A 9V/12V 2A 12Vx4 2A |
5V USB 2A 9V/ 12Vx4 2A Solar input |
5V USBx2 2A 9V/ 12V 2A 15V/24V(POE) 1A 12Vx4 5A Solar input 2A |
|
| Voltage Select | Choosing through the slide switch | |||||||
| Output Power(max) | 12W | 15W | 30W | 60W | ||||
|
Transfer Time |
0 ms | |||||||
| Battery | ||||||||
| Type | Lithium battery | |||||||
|
Qty & Capacity |
6700mAh | 8800mAh | 2200mAhX8 | 2200mAhX16 | ||||
|
Charging Period |
1-2 hours | 2-3 hours | 4-5 hours | |||||
| Physical | ||||||||
|
Dimension (mm) |
141.5*84.5*35 | 180*106*29 | 258*152*46 | |||||
|
Net Weight(kg) |
0.3 | 0.4 | 0.94 | 1.28 | ||||
| Environment | ||||||||
| Performance | Temperature 0℃~40℃ ; Humanity20%~90% | |||||||
| Noise level | Less than 40dB | |||||||
Product specifications are subject to change without notice.
